Running a Python Code Object

Running a Python Code Object using the Rhino FCP UI

Navigate to the Code Page

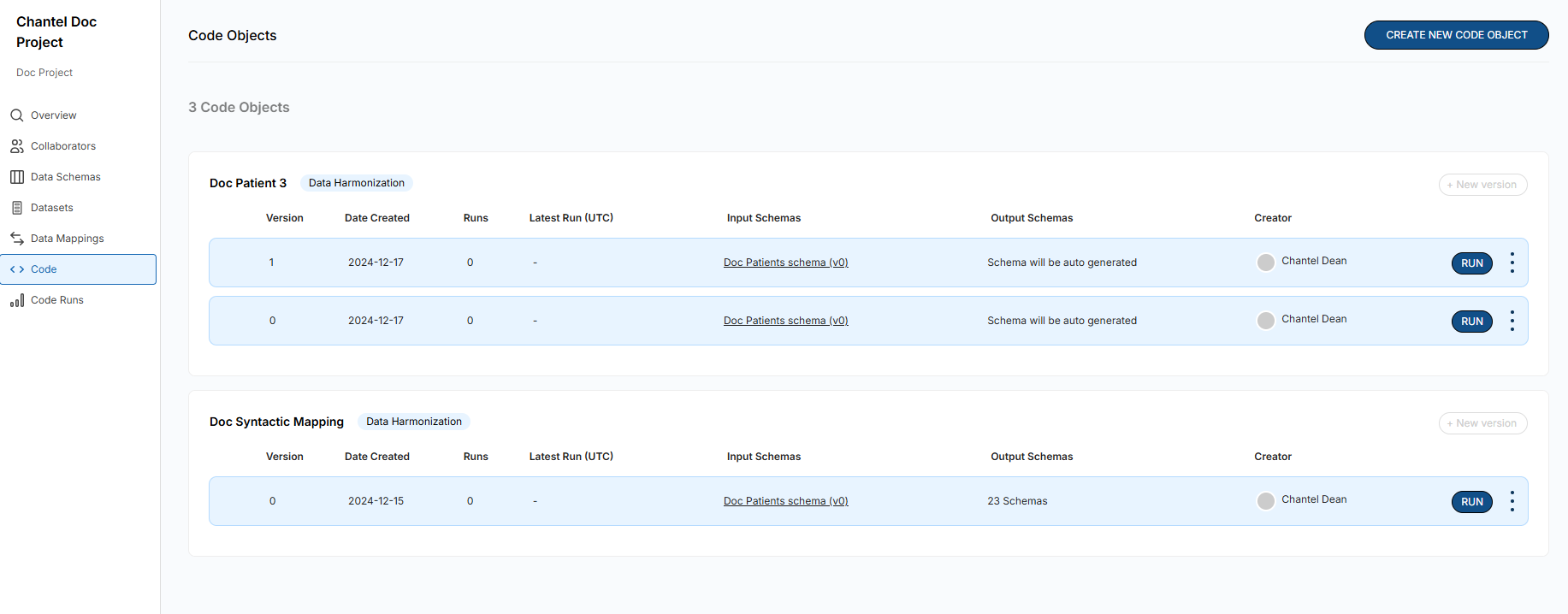

Project Dashboard.png

Use the left-hand navigation menu to click the Code (formerly Models) menu item



Run Your Code Object

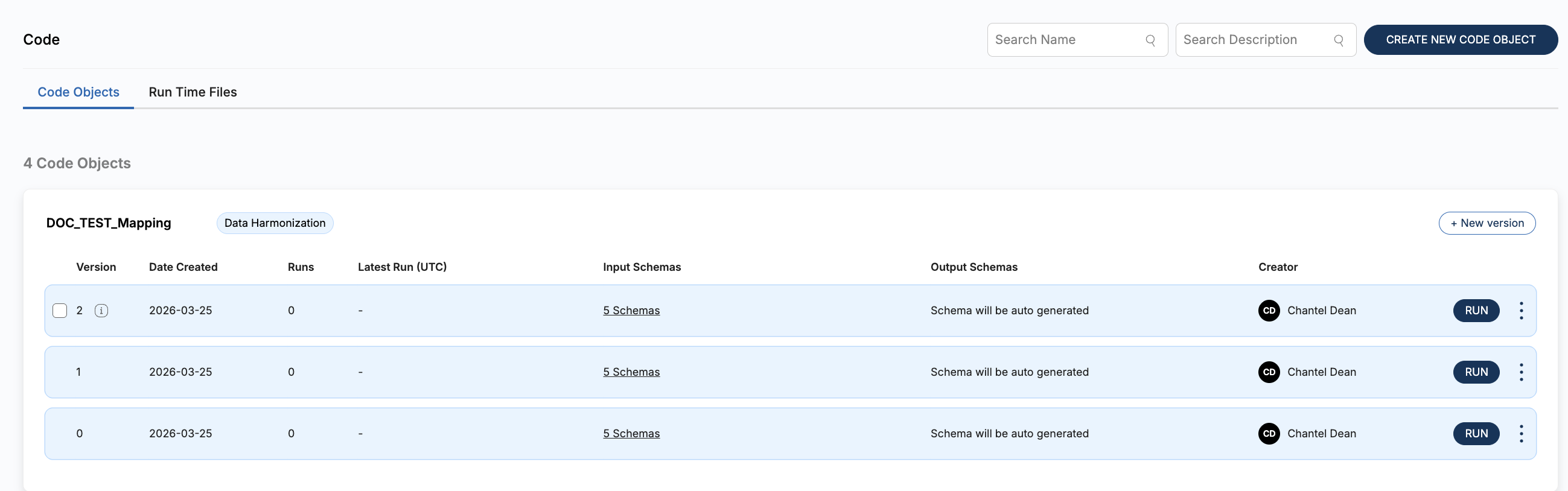

Models Main Page.png

Run your model by pressing the Run button in the specific row of the Code & Version your would like to run





Enter your Code Run Details

Run Python Code Model.png

Fill in the following fields within the new Code Run configuration window (these steps are the same for the Python Snippet, Standalone File, and Upload File(s) options):

  1. Input Dataset(s): One or more Datasets to be used as input to your Code Run. If multiple Datasets are selected, each will be run separately. If a Dataset happens to be a collaborator's Dataset, the code will be run on that collaborator's Rhino Client. In other words, the data never moves outside your collaborator's Rhino Client
  2. Output Dataset Name Suffix: A suffix that is appended onto the name of each input Dataset to define the name of the output Dataset that will be created during your Code Run
  3. Timeout in Seconds: The number of seconds that must elapse before a Code Run is automatically halted. This is to avoid zombie tasks that run perpetually within a Rhino client.
  4. Run Parameters (Optional): Here you can paste a JSON object that defines additional parameters to be provided to your Code Run. This can be used for specifying hyper-parameters for model validation or any parameter provided to the code. Run parameters are made available to the container code in a file located at /input/run_params.json

When you have completed adding all your Code Run details, click the Run button to run your code.



Running a Python Code Object using the Rhino SDK

Prerequisites

Before starting this process, you should have already:

  1. Created a Project using the Rhino SDK or UI
  2. Created 1 or more Datasets using the Rhino SDK or UI
  3. Created a Code Object using the Rhino SDK or UI



Import your Python Dependencies

import rhino_health as rh
from rhino_health.lib.endpoints.code.code_object_dataclass import (
    CodeObject,
    CodeObjectRunInput
)
import getpass



Remember to change all lines with CHANGE_ME comments above them in all the blocks below!



Log into the Rhino SDK using your FCP Credentials

Your username will be the email address you log into the Rhino FCP platform with.

print("Logging In")

# CHANGE_ME: MY_USERNAME
my_username = "MY_USERNAME"

session = rh.login(username=my_username, password=getpass.getpass())
print("Logged In")



Get Supporting FCP Information Needed to Run Your Code

At this point, you will need the name of your Project, any Dataset's name you would like to use as input, and your previously created Code Object's name. You can also retrieve each object's UUID by following the instructions here: How do I retrieve a Project's, Collaborator's, Data Schema's, Dataset's, Code's, or Code Run's' UUID?

# CHANGE_ME: YOUR_FCP_PROJECT_NAME
project = session.project.get_project_by_name('YOUR_FCP_PROJECT_NAME')

# CHANGE_ME: DATASET_NAME_1 & DATASET_NAME_2 & Possibly Version Number too
dataset1 = session.dataset.get_dataset_by_name("DATASET_NAME_1", project_uid=project.uid, version=1)
dataset2 = session.dataset.get_dataset_by_name("DATASET_NAME_2", project_uid=project.uid, version=1)
# Repeat the above for as many Datasets you would like to run as input to your Code

# CHANGE_ME: CODE_OBJECT_NAME & Possibly Version Number too
code_object = session.code.get_code_object_by_name("CODE_OBJECT_NAME:, project_uid=project.uid, version=1)



Run your Code

To run your Code you will need to supply the Code Object with the input Datasets you would like to run the Code over and an output Dataset names suffix.  The suffix will be appended to each input Dataset name so you can view the results of the Code Run once the output has been re-imported into the system as a Dataset.

code_object_params = CodeObjectRunInput(
  code_object_uid = code_object.uid,

  # CHANGE_ME: Add/Delete Dataset variables based on how many you want as input
  input_cohort_uids = [dataset1.uid, dataset2.uid],

  # CHANGE_ME: OUTPUT_SUFFIX
  output_dataset_names_suffix = "OUTPUT_SUFFIX",

  run_params: {}, # Optional - The run params code you want to run on the Datasets
  timeout_seconds: 600, # Optional - The time before a timeout is declared for the run
  sync: False # Optional - If True wait for run to end if False let it run in the background
)
code_run = session.code.run_code_object(code_object_params)
run_result = code_run.wait_for_completion()

print("Finished running code")
print(f"Result status is '{run_result.status.value}', errors={run_result.result_info.get('errors') if run_result.result_info else None}")



If you have received an error or run into any issues throughout the process, please check out our community forums, or reach out to support@rhinohealth.com for more assistance.
